Rogers RO3010 RF Printed Circuit Board 2-Layer Rogers 3010 50mil 1.27mm Microwave PCB with Immersion Silver

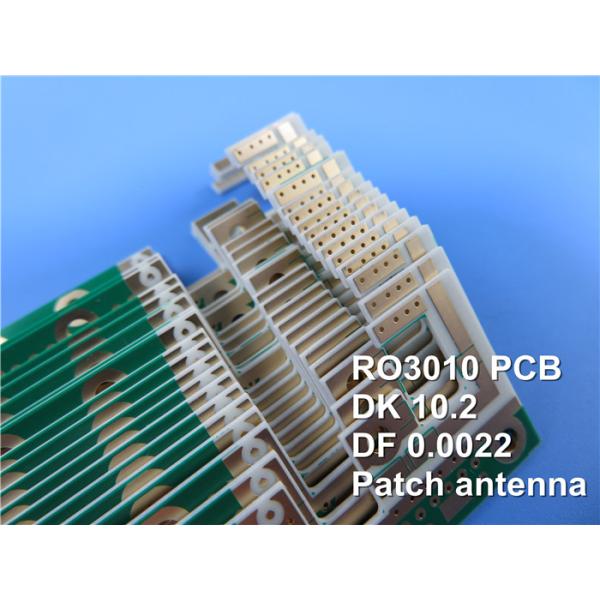

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Rogers RO3010 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3010 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.
Typical applications:
1) Automotive radar
2) Cellular telecommunications systems
3) Datalink on cable systems
4) Direct broadcast satellites
5) Global positioning satellite antennas
6) Patch antenna for wireless communications
7) Power amplifiers and antennas
8) Power backplanes
9) Remote meter readers
PCB Specifications
| PCB SIZE | 75 x 80 mm = 1 PCS |
| BOARD TYPE | High Frequency PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
| RO3010 1.270mm |
| copper ------- 18um(0.5 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.8mil/5.4mil |
| Minimum / Maximum Holes: | 0.4mm / 0.6mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | RO3010 1.270mm |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.4mm ± 10% |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold |
| Solder Mask Apply To: | TOP |
| Solder Mask Color: | Green |
| Solder Mask Type: | N/A |
| CONTOUR/CUTTING | Routing, V-cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Data Sheet of Rogers 3010 (RO3010)
